Design of a Four Consecutive One's Counter using Alliance

Introduction

This design example is a four consecutive one's counter. However, since its goal is to familiarize yourself with the Alliance design environment and its basic facilities, only the core will be designed. Furthermore, since there is no need for a data path here, the design approach will use the FSM-based design technique available.

Four Consecutive One's Counter

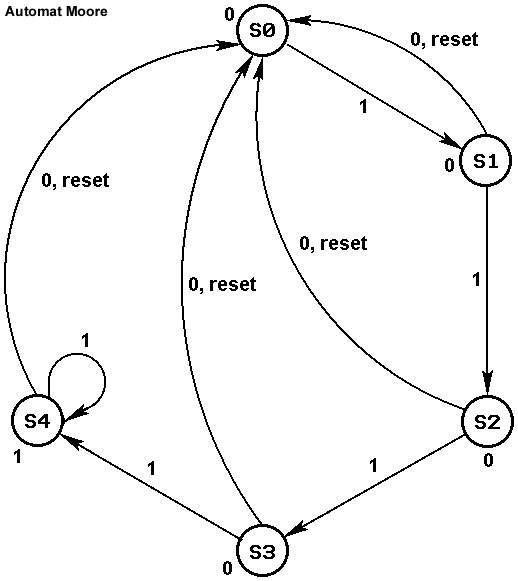

The Four Consecutive One's Counter's functionality is summarized in Figure 1 below.

Figure 1. ASM graph for the Four Consecutive One's Counter.

In this design example you will:

Describe the Algorithmic State Machine (ASM) using Alliance FSM language putting an output for each state so as to debug the machine (dcounter.fsm).
Generate the behavioural file using syf (dcounter.vbe).
Create the test pattern file (dcounter.pat).
Simulate the behavioural description of the ASM with the pattern file by using asimut.
Copy the dcounter.fsm file to the counter.fsm file, remove the outputs for the states and add the power supplies.
Generate the behavioural file using syf (counterm.vbe).
Copy the dcounter.pat file to counter.pat, remove the vectors for the debugging outputs and add the power supplies.
Synthesise the logic and structural descriptions using scmap (counterl.vst).
Simulate the synthesized description using asimut.
Use the Standard Cell Router, scr to place and route the core (counterl.ap).
Use druc to check conformance to the technology's design rules.
Generate the real layout of the core using s2r (counterl.cif).

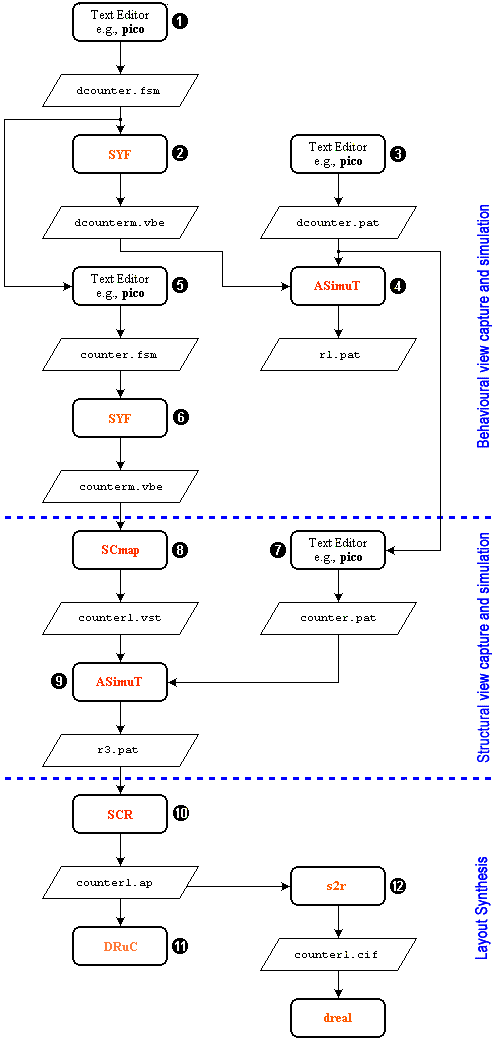

Fig 2. Design flow for the Four Consecutive One's Counter.

Creating the Design

Begin by creating a design directory, at a convenient position in your work space:

mkdir Count4Ones

Change into this directory:

cd Count4Ones

Create with the text editor a file called dcounter.fsm. Enter the following and save the file.

--*************************************************************************** ENTITY counter IS PORT ( ck, i, reset: IN BIT; o: OUT BIT; -- These flags are for debugging purposes only s0_flag, s1_flag, s2_flag, s3_flag, s4_flag : OUT BIT ); END counter; --*************************************************************************** ARCHITECTURE automate OF counter IS TYPE STATE_TYPE IS ( S0, S1, S2, S3, S4 ); -- pragma CLOCK ck -- pragma CUR_STATE CURRENT_STATE -- pragma NEX_STATE NEXT_STATE SIGNAL CURRENT_STATE, NEXT_STATE: STATE_TYPE; BEGIN PROCESS ( CURRENT_STATE, i, reset ) BEGIN IF ( reset = '1' ) THEN NEXT_STATE <= S0; o <= '0'; ELSE CASE CURRENT_STATE IS WHEN S0 => s0_flag <= '1'; IF ( i = '1' ) THEN NEXT_STATE <= S1; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S1 => s1_flag <= '1'; IF ( i = '1' ) THEN NEXT_STATE <= S2; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S2 => s2_flag <= '1'; IF ( i = '1' ) THEN NEXT_STATE <= S3; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S3 => s3_flag <= '1'; IF ( i = '1' ) THEN NEXT_STATE <= S4; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S4 => s4_flag <= '1'; IF ( i = '1' ) THEN NEXT_STATE <= S4; ELSE NEXT_STATE <= S0; END IF; o <= '1'; WHEN OTHERS => ASSERT ( '1' ) REPORT "Illegal State"; END CASE; END IF; END PROCESS; PROCESS ( ck ) BEGIN IF ( ck = '0' AND NOT ck'STABLE ) THEN CURRENT_STATE <= NEXT_STATE; END IF; END PROCESS; END automate;

Compare the state assignments and the conditions under which the state changes with that shown in the ASM graph. Notice the similarity between the ASM graph and the description given in the file. We want to debug the state machine before we do anything else with it. Therefore we have assigned a output flag to each state, which become '1' if the machine is in that state. Thus we can follow the transition of states during a simulation.

To visualize the FSM representation, you can use xfsm:

xfsm

To synthesize the FSM give the following command at the command line:

syf -m -C -V -E dcounter
-m - Uses "Mustang" as encoding algorithm -C - Checks the transition's consistency. -V - Verbose mode on. -E - Saves the encoding result in the dcounter.enc file. dcounter - dcounter.fsm

syf is a Finite State Machine synthesizer. syf allows a fast generation of VHDL Data Flow description from a VHDL Finite State Machine description. Information on syf is available in the man pages (man syf).
This command produces a file, dcounterm.vbe, which is the behavioural description of the FSM description. This behavioural description can be simulated using asimut. In addition, dcounterm.enc, which has the Mustang encoding for the FSM, is generated.

The following is typically displayed.

[user@eelabX Count4Ones]# syf -m -C -V -E dcounter @@@@ @ @@@@ @@@@ @@@@@@@@@ @ @@ @@ @ @@ @ @@ @ @@ @ @@ @ @@@ @@ @ @@ @@@@ @@ @@ @ @@@@ @@ @@@@@@ @@@ @@ @@ @ @ @@ @@ @@ @@ @@ @@ @@ @@@ @ @@ @@ @ @@@@ @@@@@@ @@@@@@ FSM Synthesizer Alliance CAD System 3.2b, syf 3.05 Copyright (c) 1995-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr --> Compile FSM file dcounter --> Simplify FSM figure --> Verify FSM figure --> States : 5 --> Inputs : 2 --> Outputs : 6 --> Edges : 11 --> Stacks : 0 --> Encode FSM figure --> Mustang encoding --> Save FSM codes --> Translate FSM to BEH --> Simplify BEH figure --> Literals : 67 --> Save BEH file dcounterm [user@eelabX Count4Ones]#

Test pattern generation and debugging of the state machine

We need a pattern file to check if the state machine performs satisfactorily.

Create with the text editor a file called dcounter.pat. Enter the following and save the file.

-- input / output list: in ck B;; in reset B;; in i B;;;; out o B;;;; out s0_flag B;;; out s1_flag B;;; out s2_flag B;;; out s3_flag B;;; out s4_flag B;; begin -- Pattern description: -- c r i o s s s s s -- k e 0 1 2 3 4 -- s _ _ _ _ _ -- e f f f f f -- t l l l l l -- a a a a a -- g g g g g pat_0 : 0 1 0 ?0 ?0 ?0 ?0 ?0 ?0 ; pat_1 : 1 1 0 ?0 ?0 ?0 ?0 ?0 ?0 ; pat_2 : 0 1 0 ?0 ?0 ?0 ?0 ?0 ?0 ; pat_3 : 1 0 0 ?0 ?1 ?0 ?0 ?0 ?0 ; pat_4 : 0 0 0 ?0 ?1 ?0 ?0 ?0 ?0 ; pat_5 : 1 0 1 ?0 ?1 ?0 ?0 ?0 ?0 ; pat_6 : 0 0 1 ?0 ?0 ?1 ?0 ?0 ?0 ; pat_7 : 1 0 1 ?0 ?0 ?1 ?0 ?0 ?0 ; pat_8 : 0 0 1 ?0 ?0 ?0 ?1 ?0 ?0 ; pat_9 : 1 0 1 ?0 ?0 ?0 ?1 ?0 ?0 ; pat_10 : 0 0 1 ?0 ?0 ?0 ?0 ?1 ?0 ; pat_10 : 1 0 1 ?0 ?0 ?0 ?0 ?1 ?0 ; pat_11 : 0 0 1 ?1 ?0 ?0 ?0 ?0 ?1 ; pat_12 : 1 0 1 ?1 ?0 ?0 ?0 ?0 ?1 ; pat_13 : 0 0 1 ?1 ?0 ?0 ?0 ?0 ?1 ; pat_14 : 1 0 1 ?1 ?0 ?0 ?0 ?0 ?1 ; pat_15 : 0 0 1 ?1 ?0 ?0 ?0 ?0 ?1 ; pat_16 : 1 1 1 ?0 ?0 ?0 ?0 ?0 ?0 ; pat_17 : 0 1 1 ?0 ?0 ?0 ?0 ?0 ?0 ; pat_18 : 1 0 1 ?0 ?1 ?0 ?0 ?0 ?0 ; pat_19 : 0 0 1 ?0 ?0 ?1 ?0 ?0 ?0 ; end;

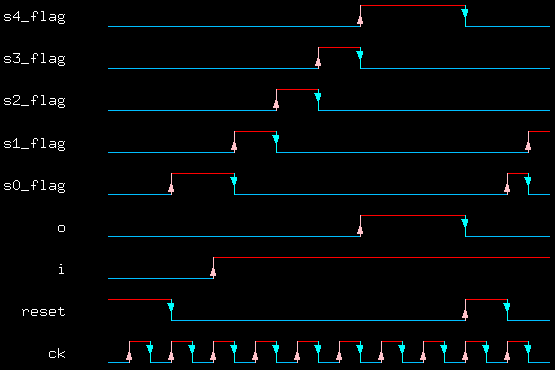

Figure 3 shows the waveform for the pattern file. Note that not every case is tested. Testing other scenarios is left as an exercise.

Figure 3. Test pattern to apply to the Four Consecutive One's Counter.

Apply the pattern file to the synthesized description:

asimut -b dcounterm dcounter r1
-b - chooses the behavioral simulation option dcounterm - dcounterm.vbe dcounter - dcounter.pat r1 - result of simulation in r1.pat

The following screen is typically displayed:

[user@eelabX Count4Ones]# asimut -b dcounterm dcounter r1 @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `dcounterm` ... BEH : Compiling `dcounterm.vbe` (Behaviour) ... Making GEX ... Searching pattern file : `dcounter` ... Restoring ... Linking ... ###----- processing pattern 0 -----### ###----- processing pattern 1 -----### ###----- processing pattern 2 -----### ###----- processing pattern 3 -----### ###----- processing pattern 4 -----### ###----- processing pattern 5 -----### ###----- processing pattern 6 -----### ###----- processing pattern 7 -----### ###----- processing pattern 8 -----### ###----- processing pattern 9 -----### ###----- processing pattern 10 -----### ###----- processing pattern 11 -----### ###----- processing pattern 12 -----### ###----- processing pattern 13 -----### ###----- processing pattern 14 -----### ###----- processing pattern 15 -----### ###----- processing pattern 16 -----### ###----- processing pattern 17 -----### ###----- processing pattern 18 -----### ###----- processing pattern 19 -----### ###----- processing pattern 20 -----### [user@eelabX Count4Ones]#

You can see the simulation result in the file r1.pat. To see this file use xpat:

xpat &

Converting the state machine to a behavioural description

Once we are sure that the state machine changes state as it should under the specified conditions, the various flag signals that we put in the dcounter.fsm file to debug the state machine can be removed.

We start by copying the dcounter.fsm file to counter.fsm and editing this file to remove the state flag signals from the description.

cp dcounter.fsm counter.fsm

Edit the file counter.fsm to remove the state flag signals to produce a description as shown below.

--*************************************************************************** ENTITY counter IS PORT ( ck, i, reset: IN BIT; o: OUT BIT; vdd, vss: IN BIT ); END counter; --*************************************************************************** -- FSM description ARCHITECTURE automate OF counter IS TYPE STATE_TYPE IS ( S0, S1, S2, S3, S4 ); -- pragma CLOCK ck -- pragma CUR_STATE CURRENT_STATE -- pragma NEX_STATE NEXT_STATE SIGNAL CURRENT_STATE, NEXT_STATE: STATE_TYPE; BEGIN PROCESS ( CURRENT_STATE, i, reset ) BEGIN IF ( reset = '1' ) THEN NEXT_STATE <= S0; o <= '0'; ELSE CASE CURRENT_STATE IS WHEN S0 => IF ( i = '1' ) THEN NEXT_STATE <= S1; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S1 => IF ( i = '1' ) THEN NEXT_STATE <= S2; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S2 => IF ( i = '1' ) THEN NEXT_STATE <= S3; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S3 => IF ( i = '1' ) THEN NEXT_STATE <= S4; ELSE NEXT_STATE <= S0; END IF; o <= '0'; WHEN S4 => IF ( i = '1' ) THEN NEXT_STATE <= S4; ELSE NEXT_STATE <= S0; END IF; o <= '1'; WHEN OTHERS => ASSERT ( '1' ) REPORT "Illegal State"; END CASE; END IF; END PROCESS; PROCESS ( ck ) BEGIN IF ( ck = '0' AND NOT ck'STABLE ) THEN CURRENT_STATE <= NEXT_STATE; END IF; END PROCESS; END automate;

Give the command to synthesise the counter.fsm file.

syf -m -C -V -E counter
-m - Uses "Mustang" as encoding algorithm -C - Checks the transition's consistency. -V - Verbose mode on. -E - Saves the encoding result in the dcounter.enc file. counter - counter.fsm

This produces a counterm.vbe file as output.

The following is typically displayed.

[user@eelabX Count4Ones]# syf -m -C -V -E counter @@@@ @ @@@@ @@@@ @@@@@@@@@ @ @@ @@ @ @@ @ @@ @ @@ @ @@ @ @@@ @@ @ @@ @@@@ @@ @@ @ @@@@ @@ @@@@@@ @@@ @@ @@ @ @ @@ @@ @@ @@ @@ @@ @@ @@@ @ @@ @@ @ @@@@ @@@@@@ @@@@@@ FSM Synthesizer Alliance CAD System 3.2b, syf 3.05 Copyright (c) 1995-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr --> Compile FSM file counter --> Simplify FSM figure --> Verify FSM figure --> States : 5 --> Inputs : 2 --> Outputs : 1 --> Edges : 11 --> Stacks : 0 --> Encode FSM figure --> Mustang encoding --> Save FSM codes --> Translate FSM to BEH --> Simplify BEH figure --> Literals : 57 --> Save BEH file counterm [user@eelabX Count4Ones]#

NOTE: At this point you should resimulate the synthesized description just to ensure that there were no editing errors:

Copy the file called dcounter.pat to counter.pat. Modify the pattern file by editing it so that it looks like the following.

-- input / output list: in vdd B; in vss B;;; in ck B;; in reset B;; in i B;;;; out o B;; begin -- Pattern description: -- vv c r i o -- ds k e -- ds s -- e -- t -- -- pat_0 : 10 0 1 0 ?0 ; pat_1 : 10 1 1 0 ?0 ; pat_2 : 10 0 1 0 ?0 ; pat_3 : 10 1 0 0 ?0 ; pat_4 : 10 0 0 0 ?0 ; pat_5 : 10 1 0 1 ?0 ; pat_6 : 10 0 0 1 ?0 ; pat_7 : 10 1 0 1 ?0 ; pat_8 : 10 0 0 1 ?0 ; pat_9 : 10 1 0 1 ?0 ; pat_10 : 10 0 0 1 ?0 ; pat_10 : 10 1 0 1 ?0 ; pat_11 : 10 0 0 1 ?1 ; pat_12 : 10 1 0 1 ?1 ; pat_13 : 10 0 0 1 ?1 ; pat_14 : 10 1 0 1 ?1 ; pat_15 : 10 0 0 1 ?1 ; pat_16 : 10 1 1 1 ?0 ; pat_17 : 10 0 1 1 ?0 ; pat_18 : 10 1 0 1 ?0 ; pat_19 : 10 0 0 1 ?0 ; end;

Then

asimut -b counterm counter r2
-b - chooses the behavioral simulation option counterm - counterm.vbe counter - counter.pat r2 - result of simulation in r2.pat

For the sake of brevity, in this document this step is not shown (there should be no errors however).

Logic and Structural Synthesis of the Core

Now scmap can be used to optimise and synthesise the core of the chip from the above behavioural description.

Give the command:

scmap counterm counterl

The following is typically displayed:

[user@eelabX Count4Ones]# scmap counterm counterl @@@@ @ @@@@ @ @ @@ @@ @@ @@ @ @@ @ @@@ @@ @ @@@ @@ @@@ @@@@ @@@ @@@ @@@@ @@ @@@ @@ @@ @@ @ @@@ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @@ @@@ @@ @@ @@ @@ @@@@@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@@ @ @@ @@ @@ @@ @@ @@ @@@ @@@ @@ @ @@@@ @@@@ @@@@ @@@ @@@ @@@@ @@ @@ @@@ @@ @@@@ Mapping Standard Cells Alliance CAD System 3.2b, scmap 4.20 [1997/10/09] Copyright (c) 1990-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr ================================ Environment ================================ MBK_WORK_LIB = . MBK_CATA_LIB = .:/usr/local/alliance/archi/Linux_elf/cells/sclib:/usr/lo cal/alliance/archi/Linux_elf/cells/padlib MBK_TARGET_LIB = /usr/local/alliance/archi/Linux_elf/cells/sclib MBK_IN_LO = vst MBK_OUT_LO = vst ======================= Files, Options and Parameters ======================= VHDL file = counterm.vbe output file = counterl.vst Parameter file = default.lax Mode = Mapping standard cell Optimization mode = 50% area - 50% delay optimization Optimization level = 2 =============================================================================== Compiling 'counter' ... Running Standard Cell Mapping ============================= INITIAL COST ================================== Total number of literals = 30 Number of reduced literals = 54 Number of latches = 6 Maximum logical depth = 5 Maximum delay = 2.000 =============================================================================== Compiling library '/usr/local/alliance/archi/Linux_elf/cells/sclib' Generating Expert System ... Cell 'cmx2_y' Unused Cell 'cry_y' Unused Cell 'sum_y' Unused Cell 'tie_y' Unused 162 rules generated ...... ============================== FINAL COST =================================== Number of cells used = 9 Number of gates used = 18 Number of inverters = 4 Number of grids = 23436 Depth max. (gates) = 5 (eq. neg. gates) = 7 =============================================================================== MBK Driving './counterl.vst'...

The structural file can be examined by giving the Unix "more" command:

more counterl.vst

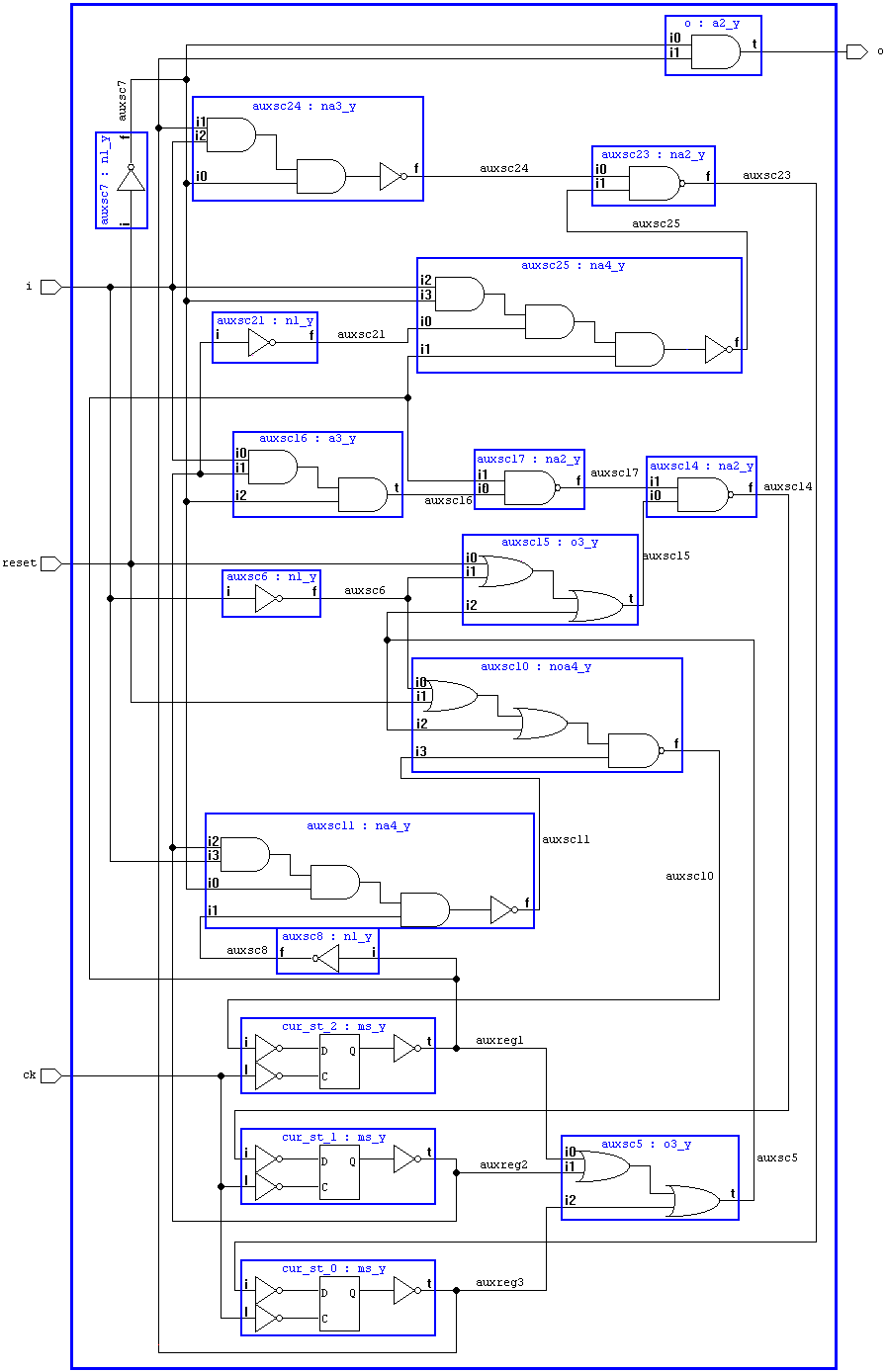

to see the structural description generated by scmap. The corresponding schematic is shown in Figure 4 below.

Figure 4. Synthesized 4 ones counter.

Simulation of the Behavioural Description

Apply the pattern file to the synthesized description. This is done just to ensure that there are no synthesis errors:

asimut counterl counter r3
counterl - counterl.vst counter - counter.pat r3 - result file (r3.pat)

The following screen is typically displayed:

[user@eelabX Count4Ones]# asimut counterl counter r3 @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `counterl` ... BEH : Compiling `counterl.vst` (Structural) ... Making GEX ... Searching pattern file : `counter` ... Restoring ... Linking ... ###----- processing pattern 0 -----### ###----- processing pattern 1 -----### ###----- processing pattern 2 -----### ###----- processing pattern 3 -----### ###----- processing pattern 4 -----### ###----- processing pattern 5 -----### ###----- processing pattern 6 -----### ###----- processing pattern 7 -----### ###----- processing pattern 8 -----### ###----- processing pattern 9 -----### ###----- processing pattern 10 -----### ###----- processing pattern 11 -----### ###----- processing pattern 12 -----### ###----- processing pattern 13 -----### ###----- processing pattern 14 -----### ###----- processing pattern 15 -----### ###----- processing pattern 16 -----### ###----- processing pattern 17 -----### ###----- processing pattern 18 -----### ###----- processing pattern 19 -----### ###----- processing pattern 20 -----### [user@eelabX Count4Ones]#

Placement and Routing of the core

The core can now be routed using scr. Give the following command at the command line:

scr -p -r -l 3 counterl
-p - invokes the automatic placement process -r - invokes the automatic routing process -l - specifies the number of rows to use

The following is typically displayed:

[user@eelabX Count4Ones]# scr -p -r -l 3 counterl @@@@ @ @@@@ @ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @ @@ @ @@ @@ @@@ @@ @ @@ @@ @@@@ @@ @@ @@ @@@@ @@ @@@@@ @@@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@@ @ @@ @@ @@ @@ @ @@@@ @@@@ @@@@@ @@@ Standard Cell router Alliance CAD System 3.2b, scr 5.2 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Loading logical view : counterl Placing logical view : counterl Loading SCP data base ... Generating initial placement ... 18 cells 23 nets in 3 rows Placement in process of treatment : 100% 43% saved in 0.2 s Saving placement 100% Checking consistency between logical and physical views Loading SCR data base ... Deleting MBK data base ... Global routing ... Channel routing ... |_____Routing Channel : scr_p2 |_____Routing Channel : scr_p4 |_____Routing Channel : scr_p6 |_____Routing Channel : scr_p8 Making vertical power and ground wires Saving layout : counterl [user@eelabX Count4Ones]#

A counterl.ap file is created which can be viewed with graal.

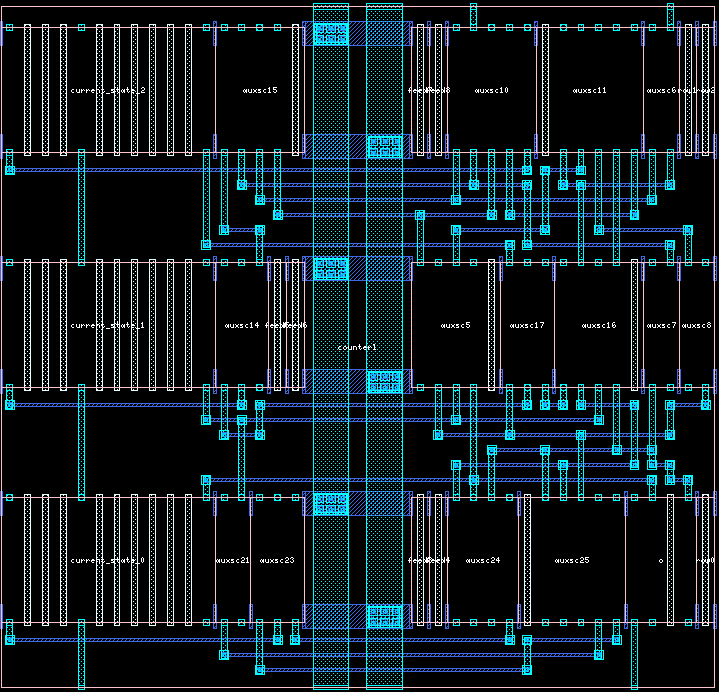

Figure 5. Layout of the 4 ones counter.

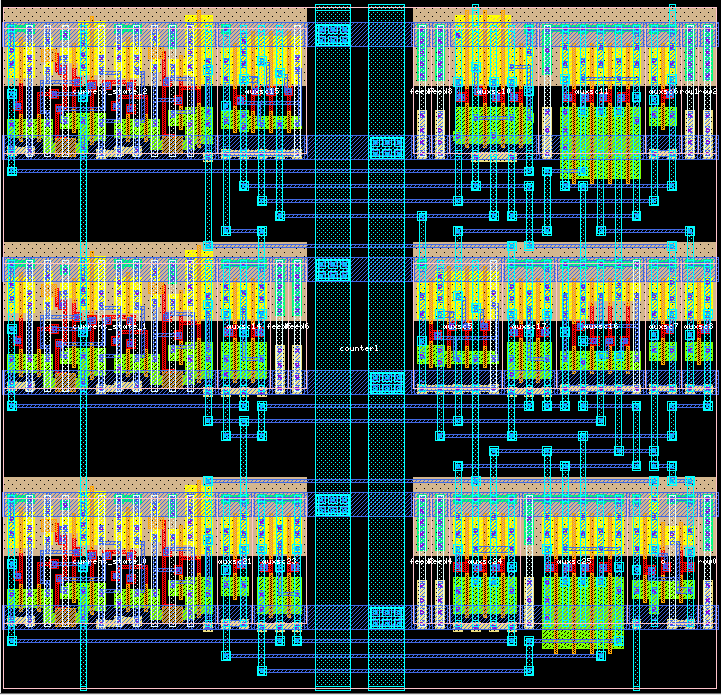

Figure 6. Flattened layout of the 4 ones counter.

Using the Design Rule Checker druc
Check the conformance of the counterl.ap layout to the technology's design rules:

druc counterl

The following is typically displayed.

[user@eelabX Count4Ones]# druc counterl @@@@@@@ @@@@@@@ @@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@@ @@@@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@@@@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@@ @@ @@ @@@@@@@ @@@@@ @@@ @@@@ @@ @@@@ Design Rule Checker Alliance CAD System 3.2b, druc 3.00 Copyright (c) 1993-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Flatten DRC on: counterl Delete MBK figure : counterl Load Flatten Rules : /usr/local/alliance/archi/Linux_elf/etc/cmos_7.rds Unify : counterl Create Ring : counterl_rng Merge Errorfiles: Merge Error Instances: instructionCourante : 50 End DRC on: counterl Saving the Error file figure Done 0 File: counterl.drc is empty: no errors detected. [user@eelabX Count4Ones]#

Real Technology Conversion
Until now all the files describe the circuit only as symbolic cells. The foundry requires the layout of the chip, described in terms of rectangles and layers in the gds or the cif format. This can be done in Alliance, by using s2r.

setenv RDS_TECHNO_NAME $TOP/etc/prol10_7.rds

This chooses the 1.0 m generic CMOS process whose technology file is the prol10.rds.
Give the command:

s2r -v counterl counterl
-v - verbose mode on first counterl - counterl.ap as input second counterl - counterl.cif as output

The following is typically displayed:

[user@eelabX Count4Ones]# s2r -v counterl counterl @@@@ @ @@ @@ @@ @@@@@@ @@@ @@ @@@ @@@ @@ @ @ @@ @@@ @@ @@@ @ @@ @@ @@@@ @ @@ @@@@ @ @@ @ @@@ @ @ @@ @@ @@ @@@@@@ @@ @ @@@@@ @@@@@@@ @@@@ Symbolic to Real layout converter Alliance CAD System 3.2b, s2r 3.6 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr o loading technology file : /usr/local/alliance/archi/Linux_elf/etc/prol10_7.r ds o loading all level of symbolic layout : counterl o removing symbolic data structure o layout post-treating without connector, with scotchs. --> post-treating model ms_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model n1_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model na2_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model tie_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_ALU1 ................................. --> post-treating model na3_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model na4_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model a2_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model o3_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model a3_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model noa4_y rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. --> post-treating model counterl ring flattenning : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. rectangle merging : . RDS_NWELL ................................. . RDS_NIMP ................................. . RDS_PIMP ................................. . RDS_ACTIV ................................. . RDS_POLY ................................. . RDS_ALU1 ................................. . RDS_ALU2 ................................. o saving counterl.cif o memory allocation informations --> required rectangles = 2515 really allocated = 943 --> required scotchs = 3 really created = 3 --> Number of allocated bytes: 67289 [user@eelabX Count4Ones]#

A counterl.cif file is created which can be viewed with dreal.

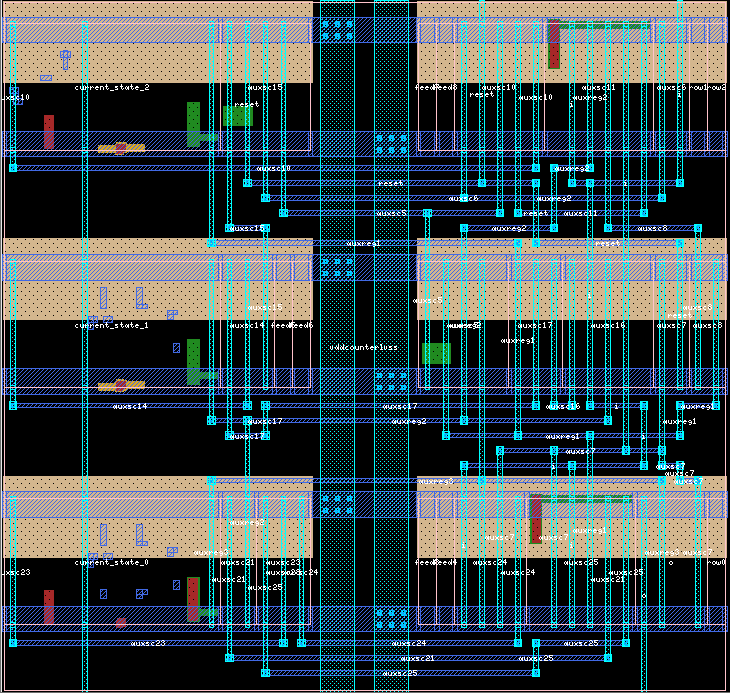

Figure 7. Real Layout of the 4 ones counter.

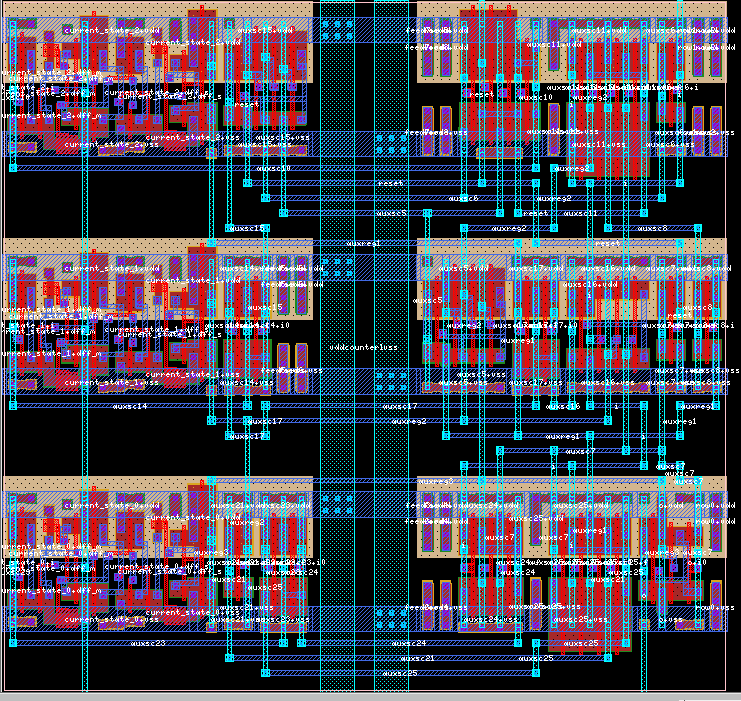

Figure 8. Real flattened layout of the 4 ones counter.

This completes the design of the counter core.
