Design of a 1-bit Full Adder using Alliance

Introduction

This design example is a 1-bit full adder. However, since its goal is to familiarize yourself with the Alliance design environment and its basic facilities, only the core will be designed. Furthermore, since there is no need for a control module here, the design approach will use just one of the data path design techniques available.

The design example consists of two phases. The first phase will describe and synthesize the behavior of the half adder. In the second phase the half adder will be used to describe the structure of a full adder (the core of the chip), and then synthesize it.

Half Adder Component

The first part of the example is designing a 1-bit half adder. The half adder's functionality is summarized in Figure 1 below.

Figure 1. 1-bit half adder.

In this phase you will:

Describe the behavior of a half adder using the VHDL language (halfadder.vbe).
Check syntax errors by passing it through asimut.
Generate a test pattern to test the half adder (halfadder.pat).
Simulate the behavioral description using the pattern file by using asimut.
Synthesize the logic description using scmap.
Use the standard cell router called scr to place and route the component (halfadderl.vst).
Use graal to see or edit the core layout (halfadderl.ap).

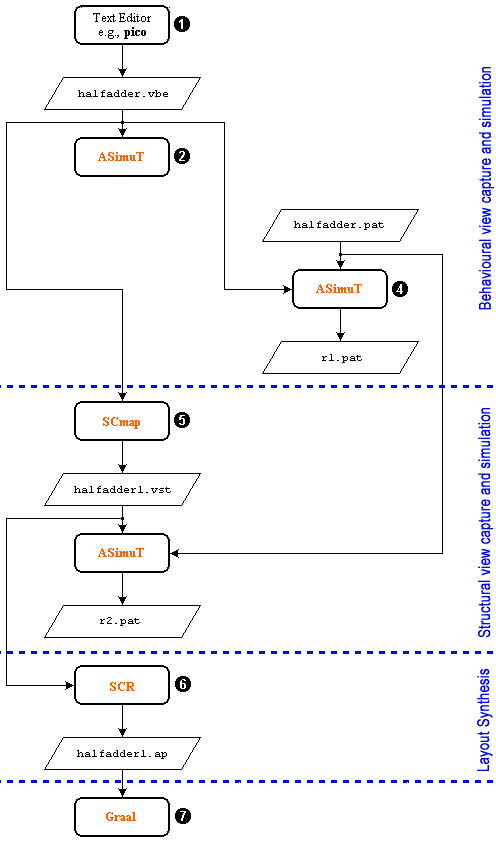

Figure 2. Design Flow for the Half Adder component.

Creating the design

Begin by creating a design directory, at a convenient position in your workspace:

mkdir FullAdder

Change into this directory:

cd FullAdder

Describing the half adder behavior

The behavioral description is done using the Alliance VHDL behavioral subset. Only concurrent statements are supported. No sequential statements are allowed. More details are available in the man pages (man vbe). We begin our design by describing the behavior of the signals in the half adder.

Create with an editor a file called halfadder.vbe, enter the following data, and save the file.

--************************************************************ ENTITY halfadder IS PORT ( A, B, Vdd, Vss: IN BIT; Sum, Carry: OUT BIT ); END halfadder; --*********************************************************** ARCHITECTURE halfadder_data_flow OF halfadder IS SIGNAL A_bar, B_bar: BIT; BEGIN A_bar <= NOT A; B_bar <= NOT B; Sum <= ( A_bar AND B ) OR ( A AND B_bar ); Carry <= A AND B; END halfadder_data_flow;

asimut is a logical simulation tool for hardware descriptions. It compiles and loads a VHDL description, which may be behavioral or structural. Only the VHDL subset discussed above is supported. Information on asimut's command line parameters, options, environmental variables required are available in the man pages (man asimut).
Any typographical or syntax error in a behavioral description can be found when the file is passed through asimut.

Give the following command at the command line:

asimut -b -c halfadder

-b - behavioral option -c - compile

The following is typically displayed.

[user@eelabX FullAdder]% asimut -b -c halfadder @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `halfadder` ... BEH : Compiling `halfadder.vbe` (Behaviour) ... Making GEX ...

Creating the test pattern for simulation

If the above step functions without giving syntax errors then the behavioral description is ready for simulation.

A file with the test patterns in the pat format is required for the simulation. The pat format file has a declaration part and a description part of the signals. The declaration part consists of a list of inputs, outputs, internal signals and registers of the design. Inputs are forced to a particular value while the outputs are observed during a simulation.

The easiest way to create a pattern file is to write it on your own. Do this by using the JOE editor or the editor in MC.

Create a file called halfadder.pat and enter the following as is:

-- input / output list : in vdd B; in vss B;;;;;; in a B;;; in b B;;; out sum B;;; out carry B;;; begin -- Pattern description : -- vv a b s c -- ds u a -- ds m r -- r -- y pat_0 : 10 0 0 ?* ?* ; pat_1 : 10 0 1 ?* ?* ; pat_2 : 10 1 0 ?* ?* ; pat_3 : 10 1 1 ?* ?* ; end;

Examine the generated pattern file using the more command.

more halfadder.pat

or give the following command to see a graphical waveform:

xpat

A new window is opened. Choose the File menu from the menu bar and choose the open option from the menu that pops up. Another sub window inside the main window will be opened. In this window the files with the extension .pat will be listed. Choose the halfadder.pat file and press the ok button. The corresponding waveform will appear on the screen.

Should you want, edit the halfadder.pat file using the text editor and change the 0s to 1s or viceversa to modify the test patterns.

Simulating the behavioral description

Give the following command at the prompt to start simulating:

asimut -b halfadder halfadder r1
-b - chooses the behavioral simulation option first halfadder - halfadder.vbe second halfadder - halfadder.pat r1 - result of simulation in r1.pat

The following screen is typically displayed:

[orion]% asimut -b halfadder halfadder r1 @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `halfadder` ... BEH : Compiling `halfadder.vbe` (Behaviour) ... Making GEX ... Searching pattern file : `halfadder` ... Restoring ... Linking ... ###----- processing pattern 0 -----### ###----- processing pattern 1 -----### ###----- processing pattern 2 -----### ###----- processing pattern 3 -----### [orion]%

You can see the simulation result in the file r1.pat. To see this file use xpat:

xpat &

Synthesizing the logic

The description given in the halfadder.vbe file is synthesized to the logical and structural descriptions using scmap. Since the circuit is very simple, we will map it to the standard cell library directly without doing any optimizations. Detailed information on scmap is available in the man pages (man scmap).

scmap halfadder halfadderl

The following is typically displayed:

[orion]% scmap halfadder halfadderl @@@@ @ @@@@ @ @ @@ @@ @@ @@ @ @@ @ @@@ @@ @ @@@ @@ @@@ @@@@ @@@ @@@ @@@@ @@ @@@ @@ @@ @@ @ @@@ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @@ @@@ @@ @@ @@ @@ @@@@@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@@ @ @@ @@ @@ @@ @@ @@ @@@ @@@ @@ @ @@@@ @@@@ @@@@ @@@ @@@ @@@@ @@ @@ @@@ @@ @@@@ Mapping Standard Cells Alliance CAD System 3.2b, scmap 4.20 [1997/10/09] Copyright (c) 1990-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr ================================ Environment ================================ MBK_WORK_LIB = . MBK_CATA_LIB = .:/usr/local/alliance/archi/Linux_elf/cells/sclib:/usr/lo cal/alliance/archi/Linux_elf/cells/padlib MBK_TARGET_LIB = /usr/local/alliance/archi/Linux_elf/cells/sclib MBK_IN_LO = vst MBK_OUT_LO = vst ======================= Files, Options and Parameters ======================= VHDL file = halfadder.vbe output file = halfadderl.vst Parameter file = default.lax Mode = Mapping standard cell Optimization mode = 50% area - 50% delay optimization Optimization level = 2 =============================================================================== Compiling 'halfadder' ... Running Standard Cell Mapping ============================= INITIAL COST ================================== Total number of literals = 6 Number of reduced literals = 8 Number of latches = 0 Maximum logical depth = 2 Maximum delay = 1.000 =============================================================================== Compiling library '/usr/local/alliance/archi/Linux_elf/cells/sclib' Generating Expert System ... Cell 'cmx2_y' Unused Cell 'cry_y' Unused Cell 'sum_y' Unused Cell 'tie_y' Unused 162 rules generated .. ============================== FINAL COST =================================== Number of cells used = 3 Number of gates used = 4 Number of inverters = 2 Number of grids = 3276 Depth max. (gates) = 2 (eq. neg. gates) = 2 =============================================================================== MBK Driving './halfadderl.vst'... [orion]%

The structural file can be examined by giving the Unix "more" command:

more halfadderl.vst

to see the structural description generated by scmap. The corresponding schematic is shown in Figure 3 below.

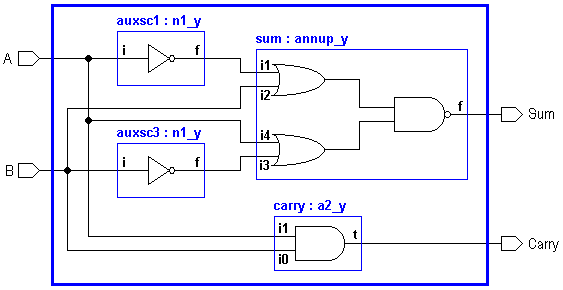

Figure 3. Synthesized 1-bit half adder.

Using Asimut to simulate the synthesized structural description

You can do the simulation of the structural description with the same pattern files that were used for the behavioral description.

To do the simulation on the structural description, give the following command at the command prompt.

asimut halfadderl halfadder r2
no option - takes the structural description by default halfadderl - halfadderl.vst halfadder - halfadder.pat r2 - result of simulation in r2.pat

The following screen is typically displayed

[orion]% asimut halfadderl halfadder r2 @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `halfadderl` ... Compiling `halfadderl` (Structural) ... Flattening the root figure ... Searching `a2_y` ... BEH : Compiling `a2_y.vbe` (Behaviour) ... Making GEX ... Searching `annup_y` ... BEH : Compiling `annup_y.vbe` (Behaviour) ... Making GEX ... Searching `n1_y` ... BEH : Compiling `n1_y.vbe` (Behaviour) ... Making GEX ... Searching pattern file : `halfadder` ... Restoring ... Linking ... ###----- processing pattern 0 -----### ###----- processing pattern 1 -----### ###----- processing pattern 2 -----### ###----- processing pattern 3 -----### [orion]%

Optimizing for Fanout and Timing

The structural description created above has been created without worrying about the standard cells fanout limits and critical path signals. glop can analyze the structural description and create a new description by adding buffers to the appropriate nets so as to solve fanout problems and to optimize on signal delays. However, at this moment we are not concerned about this. Detailed information on glop is available in the man pages (man glop).

Using the Standard Cell Router scr

The Standard Cell Router scr is used to place and route the core of the halfadderl.vst file. This creates a file with extension .ap. More information on scr is available in the man pages (man scr).

scr -p -r -i 1000 halfadderl
-p - invokes the automatic placement process -r - invokes the automatic routing process -i - iteration number to improve the placement quality (here 1000)

The following is typically displayed.

[orion]% scr -p -r -i 1000 halfadderl @@@@ @ @@@@ @ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @ @@ @ @@ @@ @@@ @@ @ @@ @@ @@@@ @@ @@ @@ @@@@ @@ @@@@@ @@@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@@ @ @@ @@ @@ @@ @ @@@@ @@@@ @@@@@ @@@ Standard Cell router Alliance CAD System 3.2b, scr 5.2 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Loading logical view : halfadderl Placing logical view : halfadderl Loading SCP data base ... Generating initial placement ... 4 cells 8 nets in 1 rows Placement in process of treatment : 100% 9% saved in 3.0 s Saving placement 100% Checking consistency between logical and physical views Loading SCR data base ... Deleting MBK data base ... Global routing ... Channel routing ... |_____Routing Channel : scr_p2 |_____Routing Channel : scr_p4 Making vertical power and ground wires Saving layout : halfadderl [orion]%

Using the symbolic layout editor

To see the half adder layout, halfadderl.ap we use graal, a symbolic layout editor.

Give the command

graal

A new window is opened. Choose the File menu from the menu bar and choose the open option from the menu that pops up. Another sub window inside the main window will be opened. In this window the files with the extension .ap will be listed. Choose the halfadderl.ap file and press the ok button. The layout will appear on the screen, but only at the standard cell level:

Figure 4. Layout of the half adder.

Now you can choose the Tool option from the menu bar and from the pop-up menu choose the peek option. Now with the mouse mark the window where you want to "peek" at the layout. If the whole layout is "peek"ed typically you will see the layout as shown below:

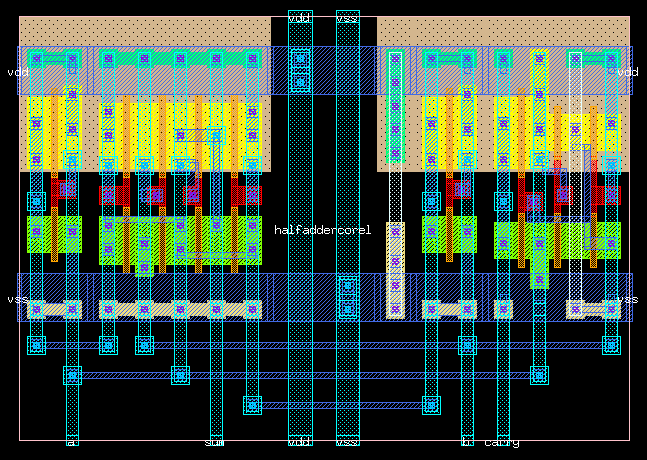

Figure 5. Flattened layout of the half adder.

This completes the design of the half adder component.

Full Adder

The (non-optimized) full adder's functionality is summarized in Figure 6 below.

Figure 6. 1-bit full adder.

The behavioral description focuses on block behavior. Figure 7 shows how two instances of the same building block, the half adder, can be used to implement a full adder using an structural approach.

Figure 7. Internal and external block diagram views of the 1-bit full adder.

(a) Block diagram composition of the full adder

(b) Top level block diagram of the full adder

In this phase you will complete the proposed design:

Describe the structure of a full adder using VHDL language (fulladder.vst) using the previously designed half-adder.
Check syntax errors by passing it through asimut.
Generate a test pattern to test the full adder using genpat (fulladder.pat).
Simulate the structural description using the pattern file by using asimut.
Use the standard cell router called scr to place and route the component (fulladder.ap).
Use druc to check conformance to the technology's design rules.
Use graal to see or edit the core layout (fulladder.ap).
Use s2r to generate the "cif" file ready for the foundry from the symbolic layout.
Use dreal to see the real layout (fulladder.cif).

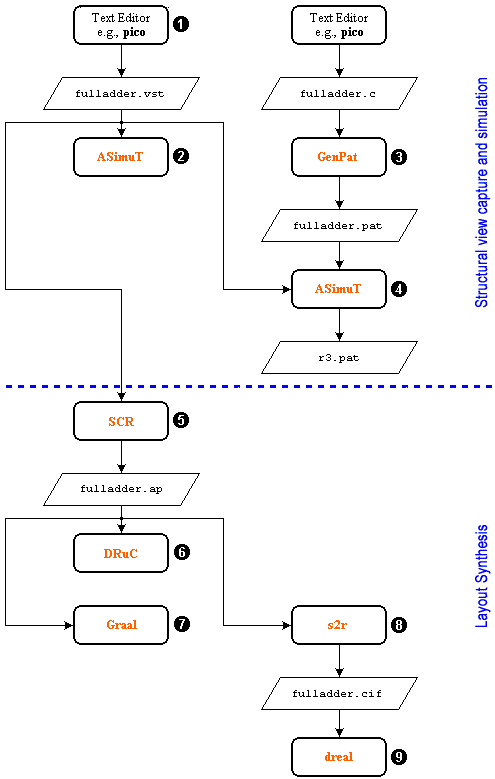

Figure 8. Design Flow for the Full Adder.

Describing the full adder structure

The structural description is done using the Alliance VHDL structural subset.

Create with the "pico" editor a file called fulladder.vst, enter the following data, and save the file.

--********************************************************** ENTITY fulladder IS PORT ( A, B, Cin, Vdd, Vss: IN BIT; Sum, Cout: OUT BIT ); END fulladder; --********************************************************* ARCHITECTURE fulladder_structural OF fulladder IS -- Declare components to use COMPONENT halfadderl PORT ( A: IN BIT; B: IN BIT; Sum: OUT BIT; Carry: OUT BIT; Vdd: IN BIT; Vss: IN BIT ); END COMPONENT; COMPONENT o2_y PORT ( i0: IN BIT; i1: IN BIT; t: OUT BIT; vdd: IN BIT; vss: IN BIT ); END COMPONENT; -- Declare internal signals SIGNAL c1, s1, c2: BIT; BEGIN -- Instantiate components and connect them ha1: halfadderl PORT MAP ( Vss => Vss, Vdd => Vdd, A => A, B => B, Sum => s1, Carry => c1 ); ha2: halfadderl PORT MAP ( Vss => Vss, Vdd => Vdd, A => s1, B => Cin, Sum => Sum, Carry => c2 ); or1: o2_y PORT MAP ( vss => Vss, vdd => Vdd, i0 => c1, i1 => c2, t => Cout ); END fulladder_structural;

Any typographical or syntax error in a structural description can be found when the file is passed through asimut.

Give the following command at the command line:

asimut -c fulladder

-c - compile

The following is typically displayed.

[orion]% asimut -c fulladder @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `fulladder` ... Compiling `fulladder` (Structural) ... Flattening the root figure ... Searching `a2_y` ... BEH : Compiling `a2_y.vbe` (Behaviour) ... Making GEX ... Searching `annup_y` ... BEH : Compiling `annup_y.vbe` (Behaviour) ... Making GEX ... Searching `n1_y` ... BEH : Compiling `n1_y.vbe` (Behaviour) ... Making GEX ... Searching `o2_y` ... BEH : Compiling `o2_y.vbe` (Behaviour) ... Making GEX ... [orion]%

Creating the test pattern for simulation

If the above step functions without giving syntax errors then the structural description is ready for simulation.

Create a file called fulladder.pat by modyfiying the existing halfadder.pat.

Give the following command to see a graphical waveform:

xpat

Should you want, edit the fulladder.pat file using the text editor and change the 0s to 1s or viceversa to modify the test patterns.

Simulating the structural description

Give the following command at the prompt to start simulating:

asimut fulladder fulladder r3
no option - chooses the structural simulation option first halfadder - fulladder.vst second halfadder - fulladder.pat r3 - result of simulation in r3.pat

The following screen is typically displayed:

[orion]% asimut fulladder fulladder r3 @ @@@@ @ @ @@@@@@@@@@ @ @ @@ @@@ @ @@ @ @@@ @@ @ @ @ @@ @ @@@ @@@ @@@ @@ @@@ @@@ @@@@ @@ @ @@ @@@@ @@@@ @@@ @@ @@ @@ @@ @@ @ @@ @@@@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @@ @@ @@ @@ @@ @@ @@ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@@ @ @@ @@ @@ @@ @@ @@@ @@ @@@@ @@@@ @ @@@@ @@@@@@ @@@@ @@@ @@@ @@@@ @@ @@@@@@ A SIMUlation Tool Alliance CAD System 3.2b, asimut v2.01 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Paris, France, Europe, Earth, Solar system, Milky Way, ... Initializing ... Searching `fulladder` ... Compiling `fulladder` (Structural) ... Flattening the root figure ... Searching `a2_y` ... BEH : Compiling `a2_y.vbe` (Behaviour) ... Making GEX ... Searching `annup_y` ... BEH : Compiling `annup_y.vbe` (Behaviour) ... Making GEX ... Searching `n1_y` ... BEH : Compiling `n1_y.vbe` (Behaviour) ... Making GEX ... Searching `o2_y` ... BEH : Compiling `o2_y.vbe` (Behaviour) ... Making GEX ... Searching pattern file : `fulladder` ... Restoring ... Linking ... ###----- processing pattern 0 -----### ###----- processing pattern 1 -----### ###----- processing pattern 2 -----### ###----- processing pattern 3 -----### ###----- processing pattern 4 -----### ###----- processing pattern 5 -----### ###----- processing pattern 6 -----### ###----- processing pattern 7 -----### [orion]%

You can see the simulation result in the file r3.pat. To see this file use xpat:

xpat &

Using the Standard Cell Router scr

The Standard Cell Router scr is used to place and route the core of the structural description given in the fulladder.vst file. This creates a file with extension .ap. More information on scr is available in the man pages (man scr).

scr -p -r -l 2 -i 1000 fulladder
-p - invokes the automatic placement process -r - invokes the automatic routing process -l - specifies the number of rows to use -i - iteration number to improve the placement quality

The following is typically displayed.

[orion]% scr -p -r -l 2 -i 1000 fulladder @@@@ @ @@@@ @ @@@@@@@ @ @@ @@ @@ @@ @@ @@ @ @@ @ @@ @@ @@@ @@ @ @@ @@ @@@@ @@ @@ @@ @@@@ @@ @@@@@ @@@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@@ @ @@ @@ @@ @@ @ @@@@ @@@@ @@@@@ @@@ Standard Cell router Alliance CAD System 3.2b, scr 5.2 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Loading logical view : fulladder Placing logical view : fulladder Loading SCP data base ... Generating initial placement ... 9 cells 14 nets in 2 rows Placement in process of treatment : 100% 59% saved in 3.6 s Saving placement 100% Checking consistency between logical and physical views Loading SCR data base ... Deleting MBK data base ... Global routing ... Channel routing ... |_____Routing Channel : scr_p2 |_____Routing Channel : scr_p4 |_____Routing Channel : scr_p6 Making vertical power and ground wires Saving layout : fulladder [orion]%

Using the Design Rule Checker druc

The Design Rule Checker druc is a general parameterized VLSI design rule checker used to check the conformance of the fulladder.ap layout to the technology's design rules.

The default mode of druc is (currently) full flat: it first flattens all the hierarchy in order to obtain a flat, rectangle level description. If design errors are found, druc produces the list of them in fulladder.drc; this ASCII file contains the list of DRC violations. In addition two other files are created: fulladder_drc.cif and fulladder_rng.cif.

More information on druc is available in the man pages (man druc).

druc fulladder

The following is typically displayed.

[orion]% druc fulladder @@@@@@@ @@@@@@@ @@@@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@@ @@@@ @@ @ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@@@@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @@ @ @@ @@ @@ @@ @@ @@@ @@ @@ @@@@@@@ @@@@@ @@@ @@@@ @@ @@@@ Design Rule Checker Alliance CAD System 3.2b, druc 3.00 Copyright (c) 1993-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr Flatten DRC on: fulladder Delete MBK figure : fulladder Load Flatten Rules : /usr/local/alliance/archi/Linux_elf/etc/cmos_7.rds Unify : fulladder Create Ring : fulladder_rng Merge Errorfiles: Merge Error Instances: instructionCourante : 50 End DRC on: fulladder Saving the Error file figure Done 0 File: fulladder.drc is empty: no errors detected. [orion]%

Viewing the symbolic layout

To see the full adder layout, fulladder.ap, we use graal.

graal

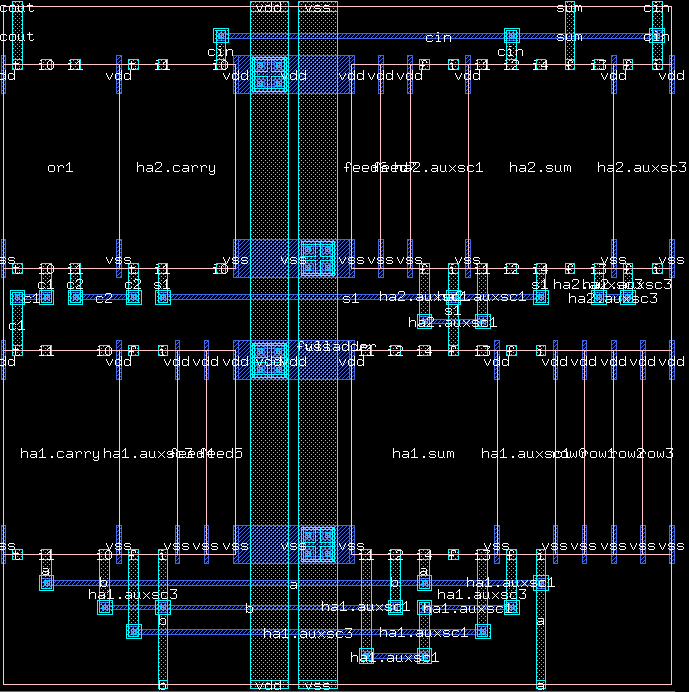

Figure 9. Symbolic layout of the full adder.

Figure 10. Flattened layout of the full adder.

This completes the design of the full adder's core.

Real Technology Conversion

Until now all the files describe the circuit only as symbolic cells. The foundry requires the layout of the core described in terms of rectangles and layers in the gds or cif format. This can be done in Alliance using s2r; the goal of s2r is to perform the translation from the symbolic layout to physical layout for the foundry. It uses a technology file whose name is defined by the environnement variable RDS_TECHNO_NAME.

More information on s2r is available in the man pages (man s2r).

s2r -v fulladder fulladder
-v - verbose mode on first fulladder - fulladder.ap as input second fulladder - fulladder.cif as output

This invocation will produce the full adder real layout from the standard cell library without connectors, in cif format (fulladder.cif).

The following is typically displayed.

[orion]% s2r -v fulladder fulladder @@@@ @ @@ @@ @@ @@@@@@ @@@ @@ @@@ @@@ @@ @ @ @@ @@@ @@ @@@ @ @@ @@ @@@@ @ @@ @@@@ @ @@ @ @@@ @ @ @@ @@ @@ @@@@@@ @@ @ @@@@@ @@@@@@@ @@@@ Symbolic to Real layout converter Alliance CAD System 3.2b, s2r 3.6 Copyright (c) 1991-1998, ASIM/LIP6/UPMC E-mail support: alliance-support@asim.lip6.fr o loading technology file : /usr/local/alliance/archi/Linux_elf/etc/cmos_7.rds o loading all level of symbolic layout : fulladder o removing symbolic data structure o layout post-treating with connectors, with scotchs. --> post-treating model a2_y rectangle merging : --> post-treating model n1_y rectangle merging : --> post-treating model tie_y rectangle merging : --> post-treating model annup_y rectangle merging : --> post-treating model o2_y rectangle merging : --> post-treating model fulladder ring flattenning : rectangle merging : o saving fulladder.gds o memory allocation informations --> required rectangles = 0 really allocated = 0 --> required scotchs = 0 really created = 0 --> Number of allocated bytes: 37282 [orion]%

Viewing the real layout

To see the full adder layout, fulladder.cif, we use dreal.

dreal

A new window is opened. Choose the File menu from the menu bar and choose the open option from the menu that pops up. Another sub window inside the main window will be opened. In this window the files with the extension .cif will be listed. Choose the fulladder.cif file and press the ok button. The layout will appear on the screen, but only at the standard cell level:

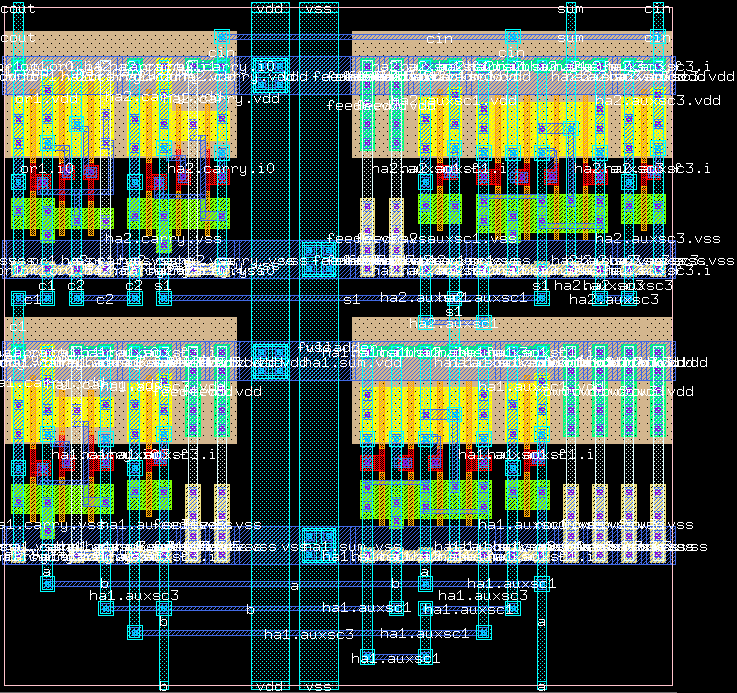

Figure 11. Real layout of the full adder.

Now you can choose the Tool option from the menu bar and from the pop-up menu choose the Flatten option. Typically you will see the layout as shown below:

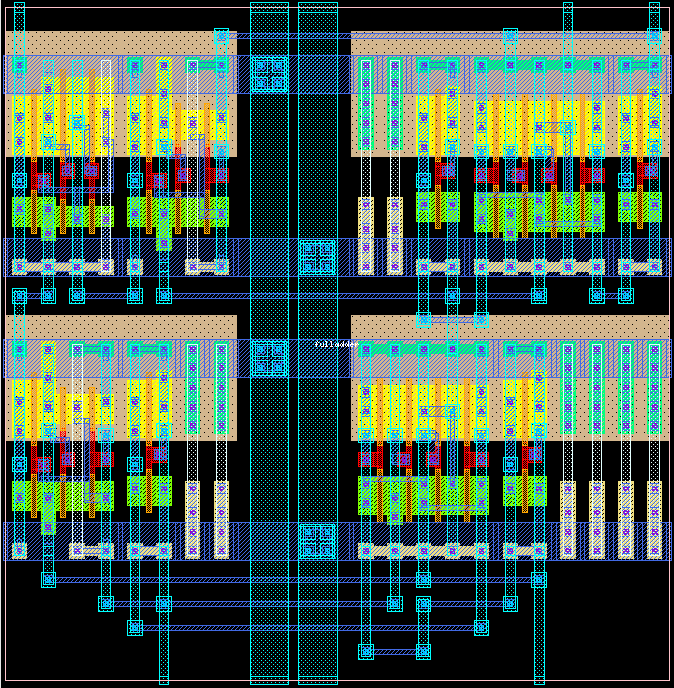

Figure 12. Real (flattened) layout of the full adder.

This completes the design of the 1-bit full adder core.
